Capacitors Run/start

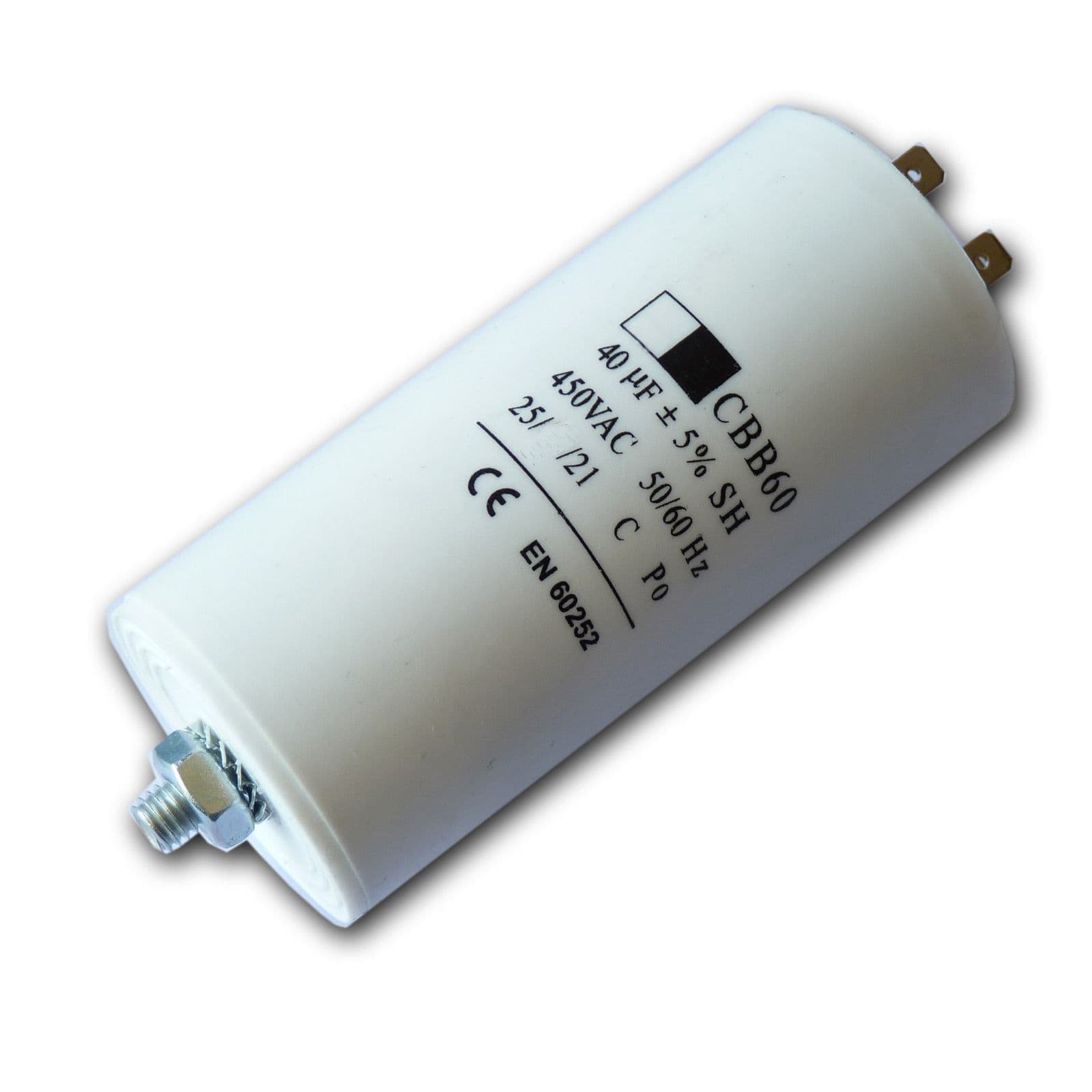

40uf universal capacitor for use with all motors including washing machine, dishwasher and tumble dryers
fitted with a screw thread and two double male spade connectors
40uf
450VAC 50/60Hz
25/70/21
Useful information about capacitors
The voltage rating for a capacitor is the maximum voltage you can apply without breaking the capacitor.
Consider something similar like the pressure rating for a tank that holds compressed air. The highest pressure the tank can withstand without breaking?
If you expose a capacitor to a higher voltage than it's rated for, it'll probably blow its top. So, make sure that the voltage rating on the capacitor is greater than the voltage you're expecting
The uF value on a capacitor is its capacitance. The higher the capacitance, the more charge the plates can store at a given voltage.
Capacitor UF should be replaced Like for like this is important as you can damage your motor if you use the wrong uf rating.
Our capacitors are rated to 450v
Climatic categories: 25/70/21, 25/85/21
meaning= Minimum -°c / Maximum +°c / Damp Heat days
Climatic categories do not real make a great difference unless you have a very specific application in very harsh enviroments
-
GTIN:5053197007272
-
MPN:11-CA-40
-
Brand:Place4parts
-
Condition:New
-
Product Code:40uF TAB
-
Weight:0.225kg
