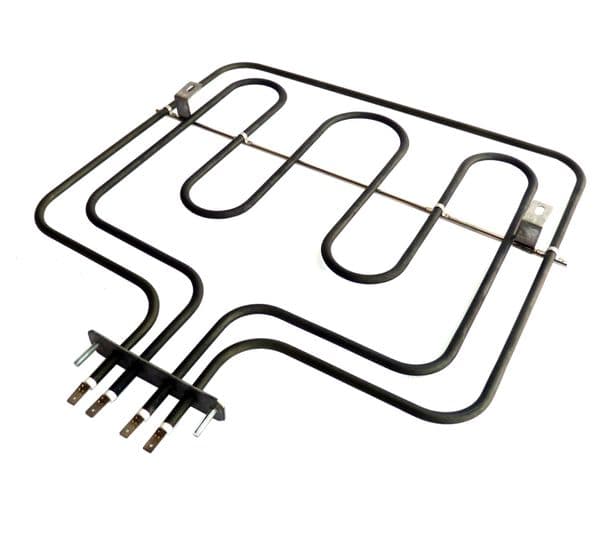

Oven Cooker Dual Grill Element 3117699011

Approximate Dimensions

Width 350mm

Length 345mm (measured from bracket to end of element)

Fixing points on crossbar 305mm

Crossbar 370mm

Bracket 100mm

Fixing points on bracket 87mm (center to center)

Outside Terminals 55mm (center to center)

Inside Terminals 25mm (center to center)

Wattage 1400w + 1400w

Total Wattage 2800w

For The following Models

AEG

5212BU-A (ALUMINIUM), 5212BU-M2 (ST. STEEL), 5212BU-W2 (WHITE), D1100-4-M, D2160-1B2 (BLACK), D2160-1D2 (BROWN), D2160-1G2 (GREEN), D2160-1M2 (S. STEEL), D2160-1W2 (WHITE), D4100-1A (ALUTEC), D4100-1B (BLACK), D4100-1D (BROWN), D4100-1M (STAINLESS), D4100-1MEX, D4100-1W (WHITE), D4150-1B2 (BLACK), D4150-1M2 (ST. STEEL), D4150-1W2 (WHITE), U3100-4-B (BLACK), U3100-4-D (BROWN), U3100-4-M (ST. STEEL), U3100-4-W (WHITE), U7101-4-A, U7101-4-M

ELECTROLUX

DDO60CEGR (PREMIER), DDO60CEWH (PREMIER), DDO61CEBK, DDO61CEGR, DDO61CEW, EBUSS, EDB710B, EDB710W, EDB710X2, EDB715BU, EDB715GR, EDB715W, EDOMBR, EDOMSS, EDOMWH, EOD5310B, EOD5310W, EOD5310X, EOD6335K (BLACK), EOD6335U (ALUMINIUM), EOD6335W (WHITE), EOD6335X (STAINLESS), EOD6335XK(STAINLESS), EOD6390X, EOD982B2, EOD982BK2, EOD982C2, EOD982W2, EOD983X2, EOD984B2, EOD984W2, EOD985B2, EOD985GR2, EOD985W2, EOU5330W, EOU5330X, EOU63

JOHN LEWIS

JLBIDOS904, JLDUOS705

MOFFAT

MDB700W, MDB700X

PARKINSON COWAN

CSM559XN, SM554WL, SM554WN

TRICITY BENDIX

CSE500X (STRATA), CSE551SV, CSE551W, CSIE501SV (STRATA), CSIE501WH (STRATA), CSIE508GR (STRATA), CSIE508W (STRATA), CSIE508X (STRATA), SE501SV, SE501W, SE505X, SE550W, SE551W, SE553BK, SE553W, SE554BK, SE554GR, SE554SV, SE554W, SE555BG, SE555PW, SE555SV, SE558FPS, SE558W, SI505B (ACCLAIM), SI505W (ACCLAIM), SIE505C (ACCLAIM), SIE505GR (ACCLAIM), SIE555BG, SIE555PW, SIE555SV, SIE556W, TBD950WH, TBD950X

ZANUSSI

ZCE7610SV, ZCE7610W, ZCE7680BK, ZCE7680W, ZCE7690X, ZDF290XC, ZDQ595N, ZDQ595W, ZDQ595X, ZDQ695ALU, ZDQ695ALUR, ZDQ695N, ZDQ695W, ZDQ695X, ZDQ695XR, ZDQ695XR, ZHQ575ALU, ZHQ575N, ZHQ575W, ZHQ575X, ZOU330W, ZOU330X, ZOD550N, ZOD550X, ZOD890X, ZOU575N, ZOU575X, ZUF270W, ZUF270X, ZUQ875N, ZUQ875W, ZUQ875X

IMPORTANT

Please compare your old part with the photographs and dimensions provided prior to ordering as manufacturers change the design and components of their appliances without changing the model numbers and this is beyond our control.

Manufacturers names and part numbers are used for reference only.

This is a high-quality compatible part.
