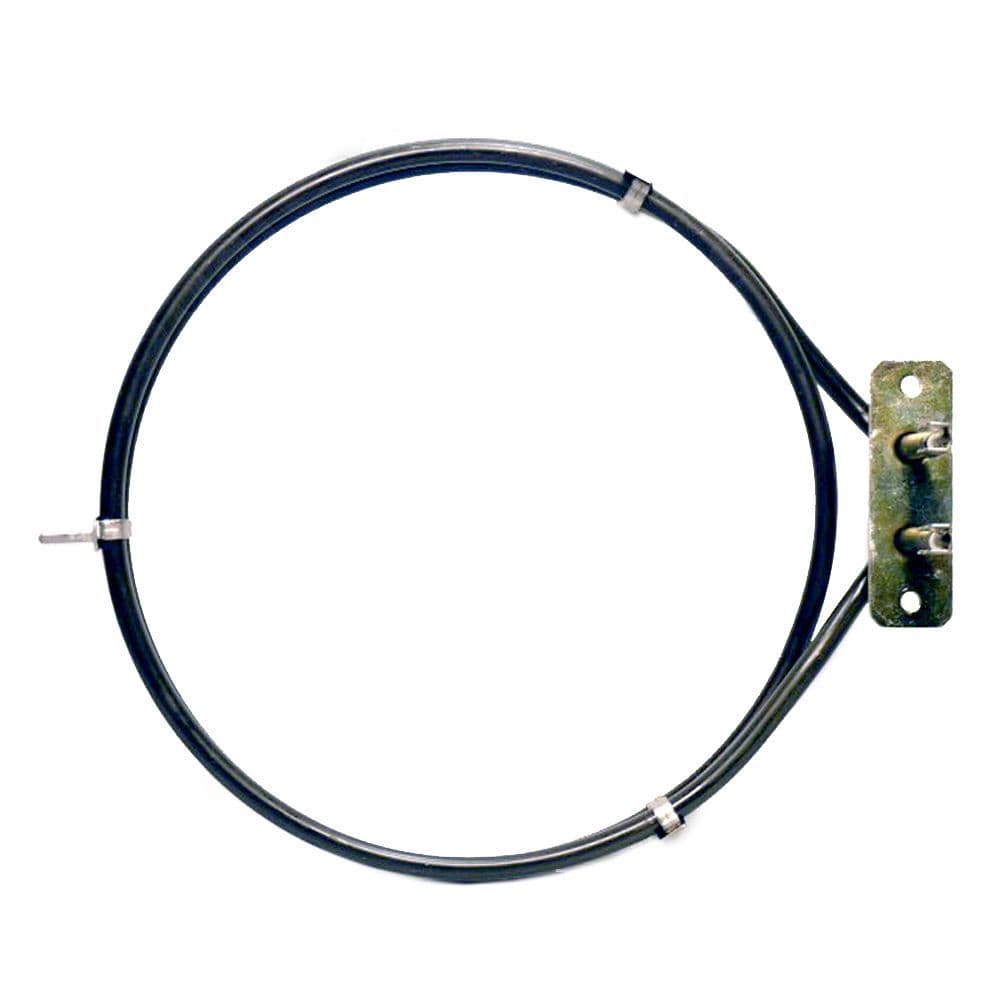

This diagram is to show the measuring points on an element only
View Measurements in Specifications (* all Measurements are Approximate)

Models:
Fits many more If can not find your model number bellow ,
Email us your details.

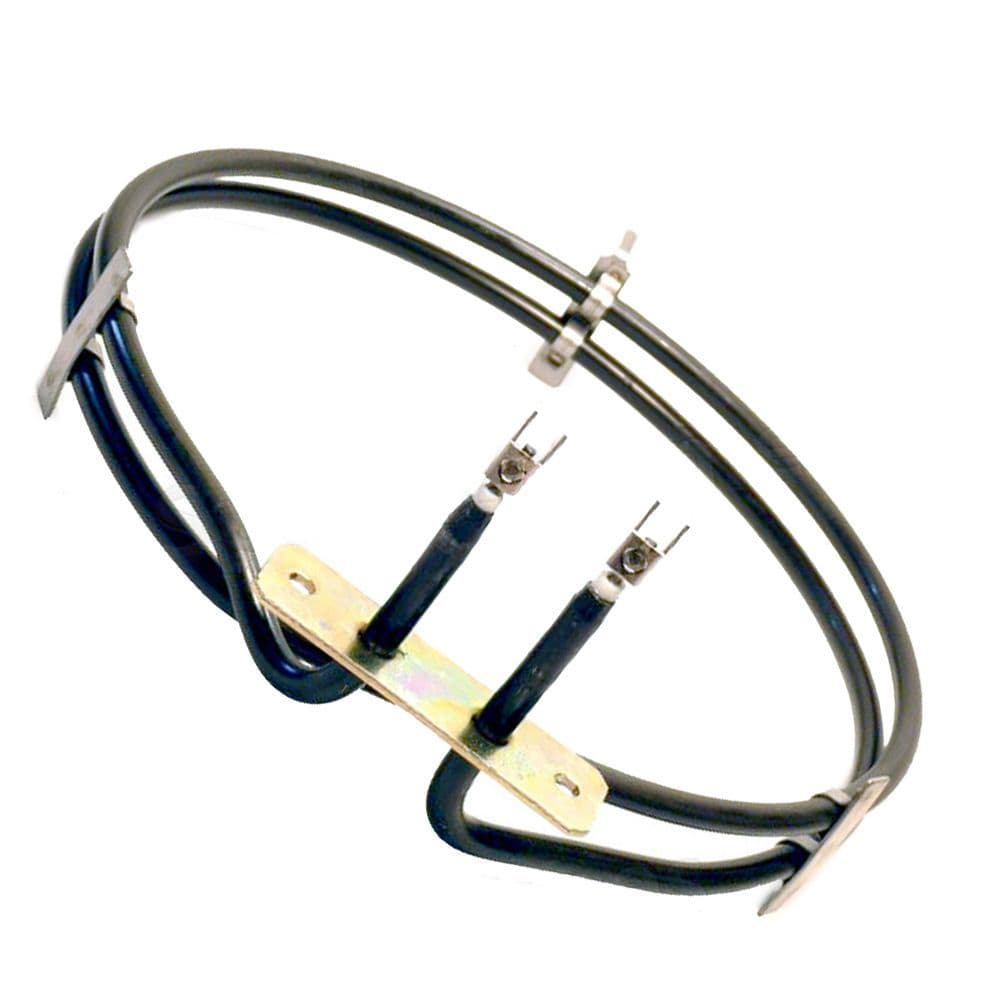

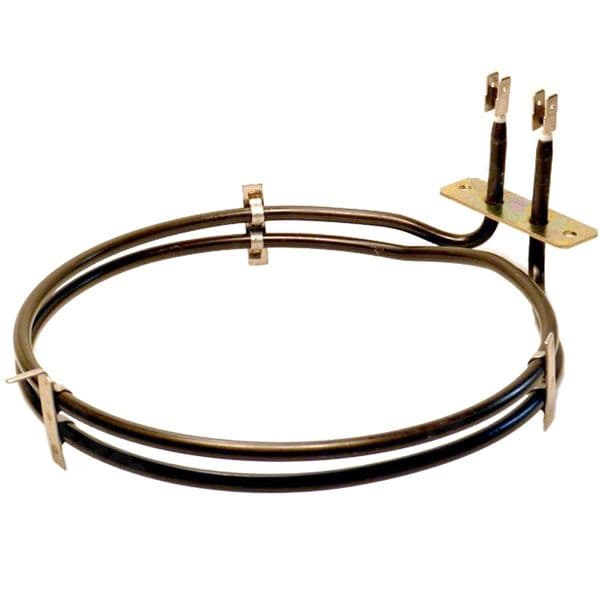

Beko, Belling, Brandt, Homark, Howden, Diplomat, Proline, White Westinghouse Fan Oven Element High Quality Replacement Part


Approximate Dimensions

Width 195mm
Length 220mm
Bracket 70mm

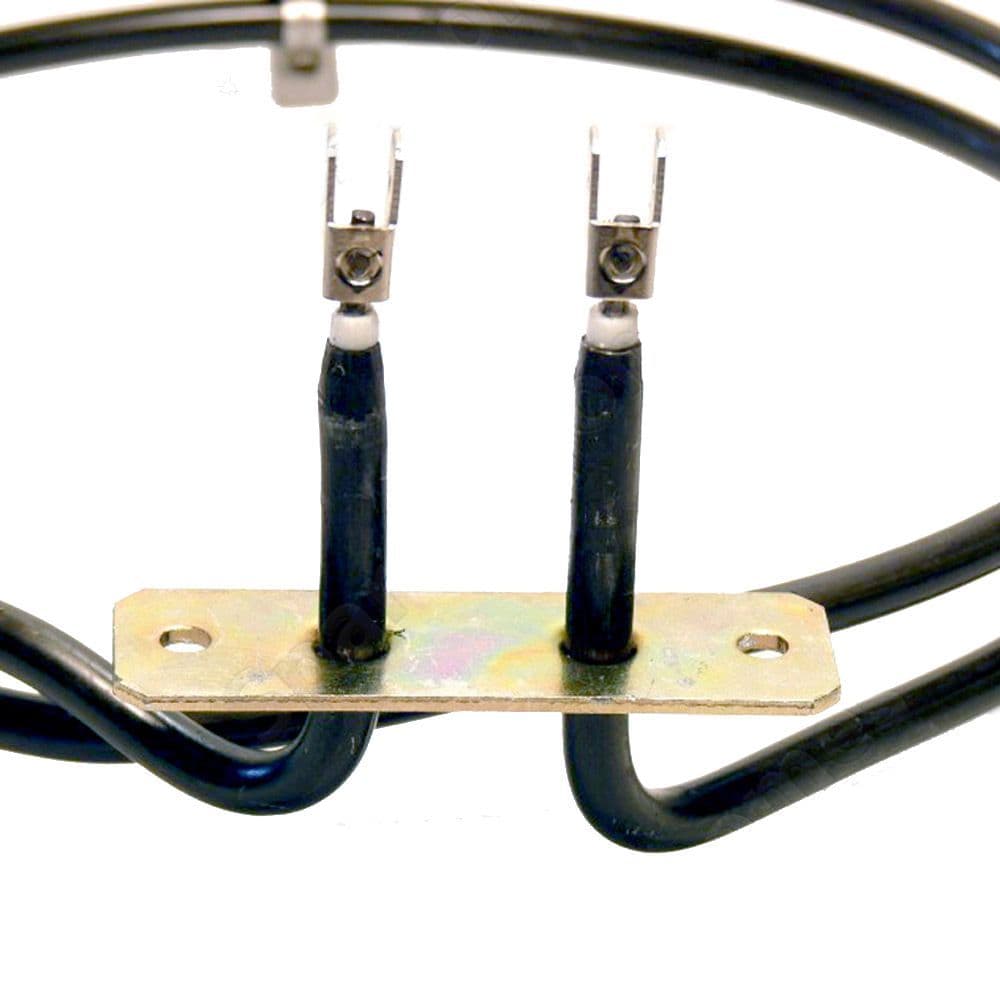

Tags 25mm Apart (Centre to Centre)
Fixing Points 55mm Apart (Centre to Centre)

HM14103
082618155

2 Turn 2000w

Fits The Following Models

Beko
B61GHFX, B61GHFXP, BE61FSW, BE61FSX, BE63FCHX, BE63FGHX, BE63FGHXP, BE65FGHX, BE65FGHX/1, BE65FGHXP, BE65FSW, BE65FSX, BE66FCHX, BE66FSW, BE66FSX, BE66MSW, BE66MSX, BE68FSK, BE68FSW, BE68FSX, BE68MSK, BE68MSW, BE68MSX, BE92FVW, BE92FVX, EBV9MK, BE65FGHW, BE65FGHW/1, BE65FCHW, APG60X, AFO60X
Belling
789SS, XOU163 BL, XOU163 BR, XOU163 GR, XOU163 WH, XOU164 BL, XOU164 BR, XOU164 GR, XOU164 WH, XOU181 ST, XOU182 SS, XOU491 WH, XOU789 SS, XOU60FBK, XOU60FPBK, XOU60FPSS, XOU60FPW, XOU60FSS, XOU60FW, XOU60MFBK, XOU60MFSS, XOU60MFW, XOU67F, XOU67MF, XOU68MF, XOU69MF
Brandt
 FAC24W1N , FAC24X1N , FAT23H1U , FAT24B1G , FAT24B1U , FAT24T1G , FAT24T1U , FAT24TIU , FAT24W1G , FAT24W1U , FAT24X1G , FAT24X1U , FBT21T1G , FBT21W1G , FBT21X1G , FBT24B1G , FBT24T1G , FBT24W1G , FBT24X1G , FD292BU1 , FD292WU1 , FD292XU1 , FLC24B1U , FLC24C1U , FLC24W1U , FLC24X1U , FLT24M1U , FLT24T1U , FLT24W1U , FLT24X1U
Cookers (Homark)
 01-600306, 02-600306, 05-600306, 01-600101A, 01-600201, 01-601101A, 02-600101A, 02-600201, 02-601101A, 05-600101A, 05-600201, 06-601101A, 07-600201, 07-601101A
Carrera (Homark)
 01-100101A, 02-100101A, 05-103101A, 06-100101A
Domo (Homark)
 01-700301B, 02-700301W, 01-600201, 01-600206, 01-601201, 01-700206A, 01-700301, 01-700306A, 01-700401, 01-700406, 01-700501, 01-7600A, 01-801101A, 02-600206, 02-601201, 02-700206A, 02-700301, 02-700401, 02-700406, 02-700501, 02-7600A, 02-801101A, 05-703105A, 05-703205, 07-206106, 07-206201, 07-700401, 08-801201, 09-601201, 09-801201, 10-801201, 11-801201, 12-801201, 13-801201, 15-601201, 15-801201, 16-801201, 17-801201, 20-601201
Homark
 01-700501, 02-700501
Howden
HJA3300, HJA3303, HJA3313, HJA3650, HJA4610
Diplomat
ADP3101, ADP3411, ADP3421, ADP3441, ADP3731, ADP3741, ADP3751, ADP4301, APL3201, APL3301, ADP3262, ADP3263, ADP3300, ADP3302, ADP3650, ADP3652, ADP3700, ADP4600, ADP4602, ADP4610, ADP4612, ADP4613, DAD3303
Proline
 EF6200B, EF6200W, EF9000W
White Westinghouse
 02-200306, 07-200306/1
07-206106, 07-206201GR

We strongly recommend you remove the part that is faulty and check it against the dimensions and photographs provided in the listing prior to ordering. Manufacturers often change the design and components of their appliances without changing the model numbers and this is beyond our control.

All electrical components should be fitted by a competent electrician.
