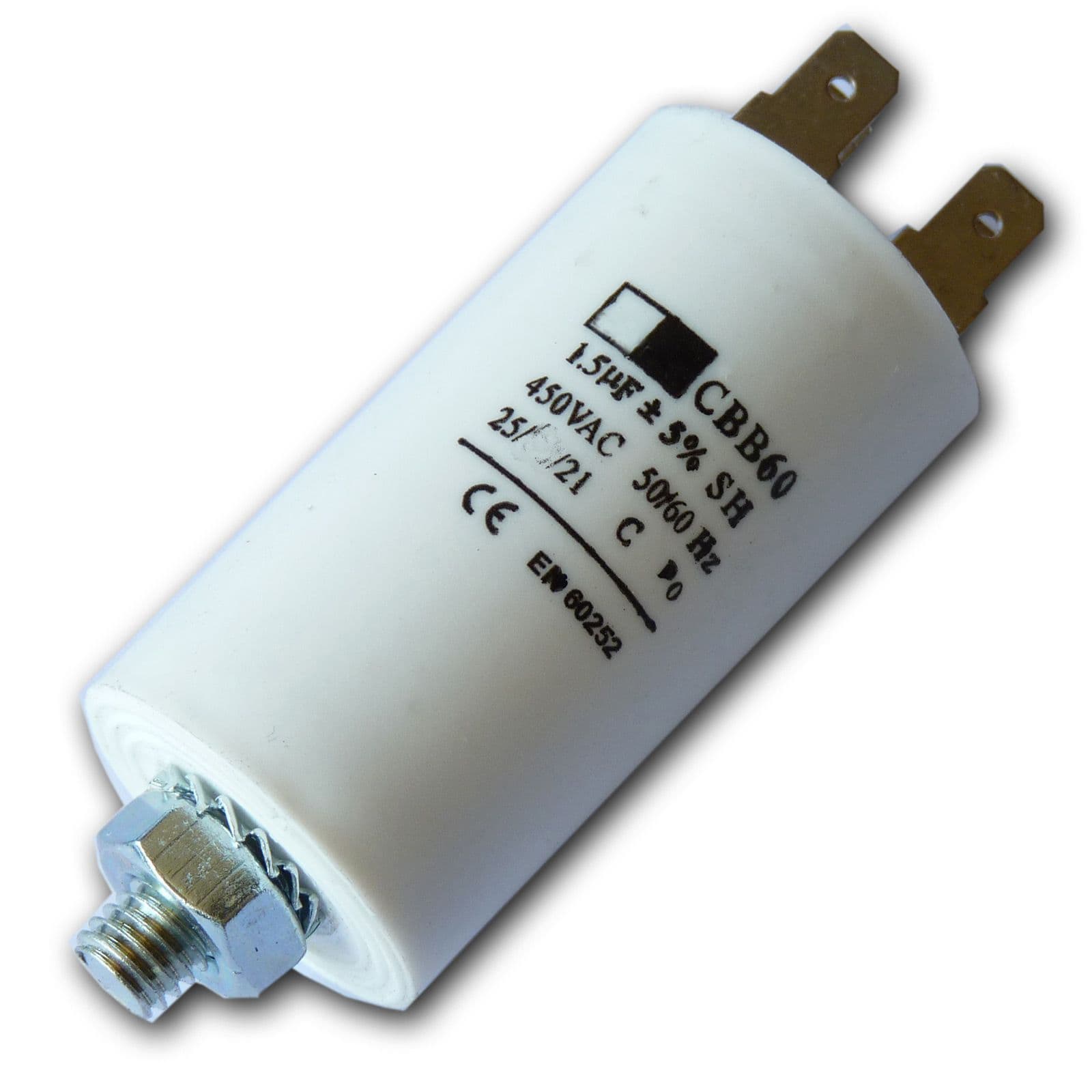

An extensive range of Universal capacitors are available for various appliances such as washing machines, dryers, pumps, motors, etc. All featuring spade connectors for easy installation.

Select from our range of CBB60 capacitors with capacitance ratings of 1.5uf, 2.5uf, 3uf, 3.5uf, 4uf, 4.5uf, 5uf, 6uf, 6.3uf, 7uf, 7.5uf, 8uf, 10uf, 11uf, 12.5uf, 14uf, 15uf, 16uf, 18uf, 20uf, 22uf, 20uf, 25uf, 30uf, 31.5uf, 35uf, 40uf, 45uf, 50uf, 60uf, 70uf, and 80uf. The 450VAC 50/60Hz voltage rating ensures safe usage.

Please note that capacitor sizes may vary, so feel free to contact us if you have specific size requirements. The length (L) and diameter (D) of the capacitor will be provided upon request.

It is important to note that the voltage rating of a capacitor should be the same or greater than the voltage it will be exposed to in order to prevent damage.

The uF or mF value indicates the capacitance, it is crucial to replace the capacitor with the same uF rating as the previous one.

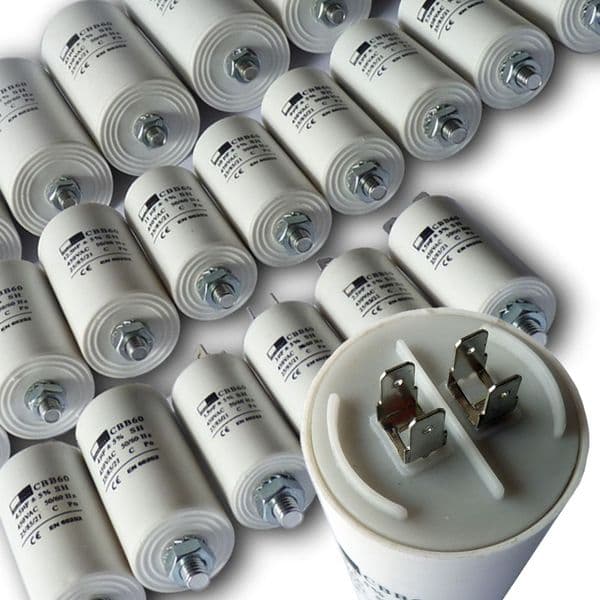

Most of our capacitors have a 450VAC rating and come in both spade connector and prewired options, with 2 U type contacts offering 4 spade connection points for additional flexibility. Our capacitors are also bipolar, allowing them to be connected in either orientation.

The climate categories: for our capacitors are 25/70/21 and 25/85/21, indicating the minimum and maximum operating temperatures and number of days in damp heat conditions. Some capacitors may have a different climate category, but this should not make a significant difference in normal usage. Only in very harsh environments should the category be considered for specific applications.
