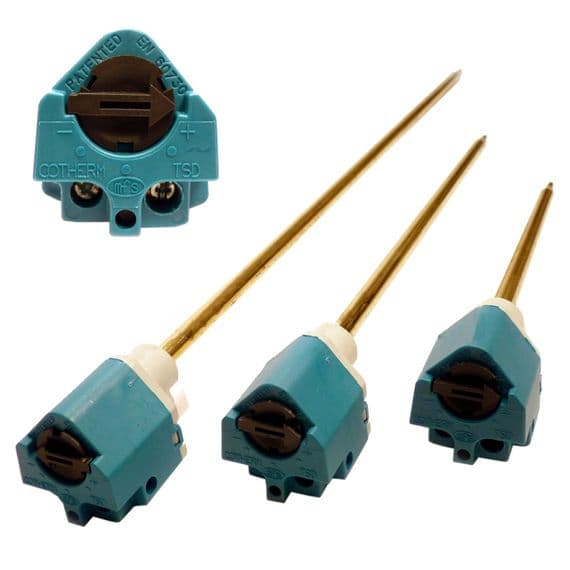

7" 11" AND 18" IMMERSION THERMOSTAT

Manufactured by Cotherm

All stats come with overheat protection and Reset Button

Rated to 85 Degrees

Control Range  Max  65 Degrees Centigrade

Over Temperature cut-out 90-98 Degree's C

240V
16A

Calibration Accuracy +/- 5

This thermostat is calibrated to give a water temperature of approximately 65 degrees centigrade in normal operation. Adjustment is carried out by means of the control knob, which can be rotated clockwise to reduce the setting.

In addition to temperature control, the TSDR incorporates an over temperature cut-out to prevent excessive water temperatures.

Should the over temperature cut-out operate the reset pin will be pushed upwards and become levell or slightly proud of the upper surface of the cover.

7" Horizontal fitting

11" Horizontal fitting

18" Vertical fitting
