Oven Elements

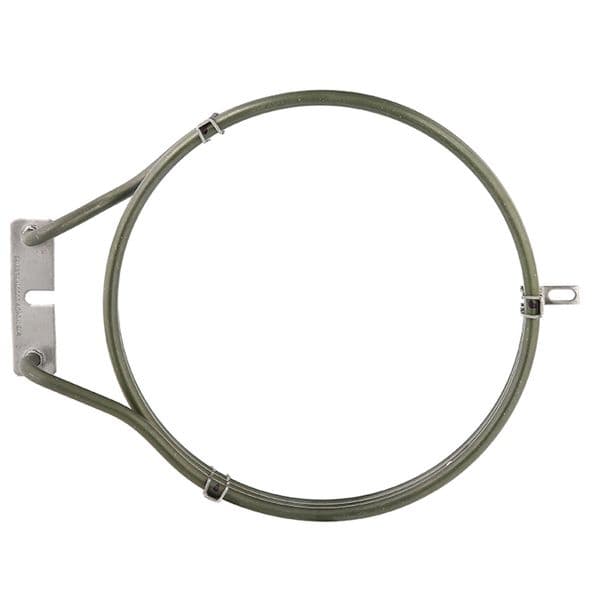

Fan Oven Element for CDA Diplomat Hygena Matrix Oelfana
-27995-p.jpg?v=CC15EBF5-9416-471E-A381-78AFE714B039)
-27995-p.jpg?v=8641F057-1584-4BC2-932B-4EE4AFA9C8F3)
-27995-p.jpg?v=B3ED8819-2A36-42B5-A410-08B8855091E3)
-27995-p.jpg?v=CD12EFFE-0F9B-4700-B47B-0A1ED3C81EBA)

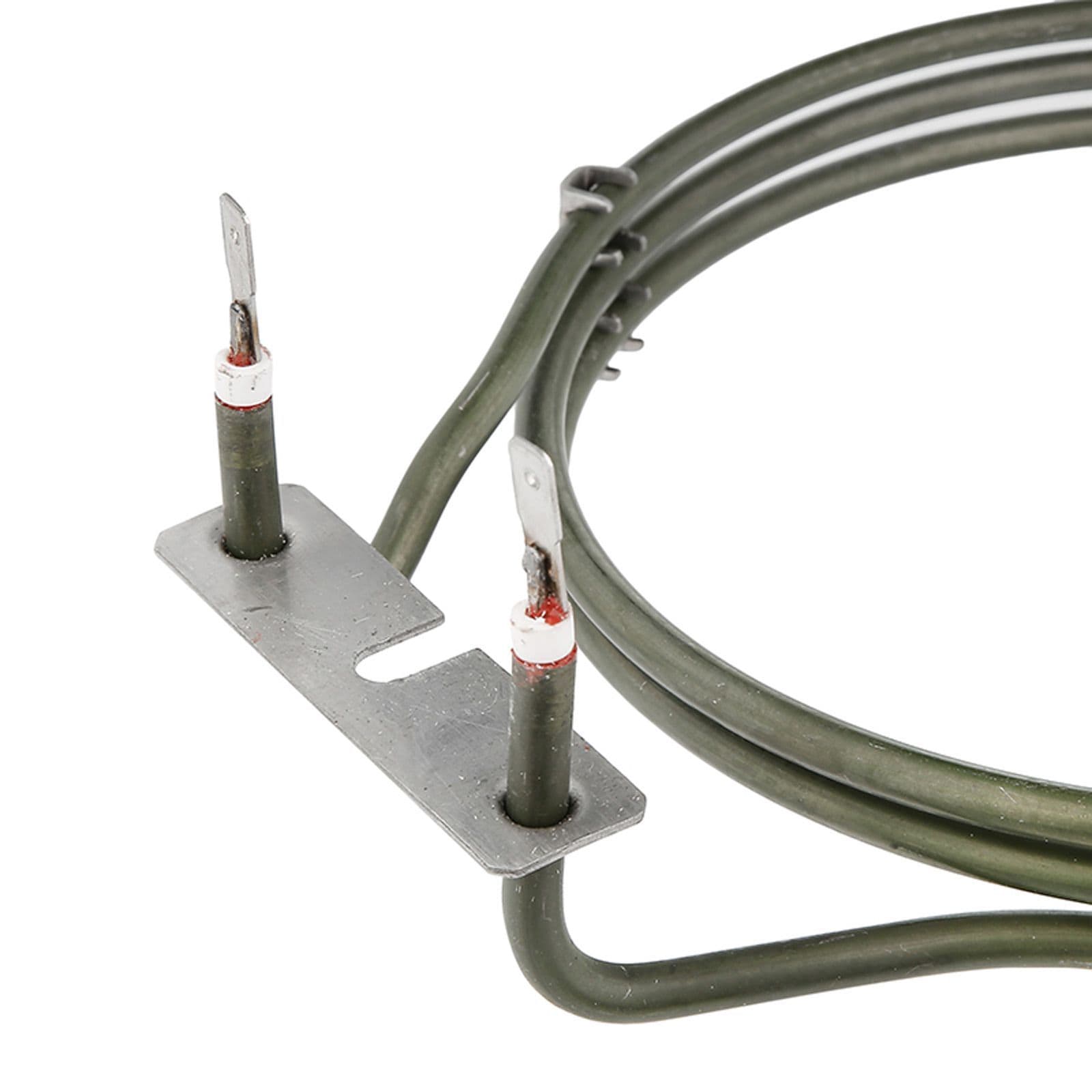

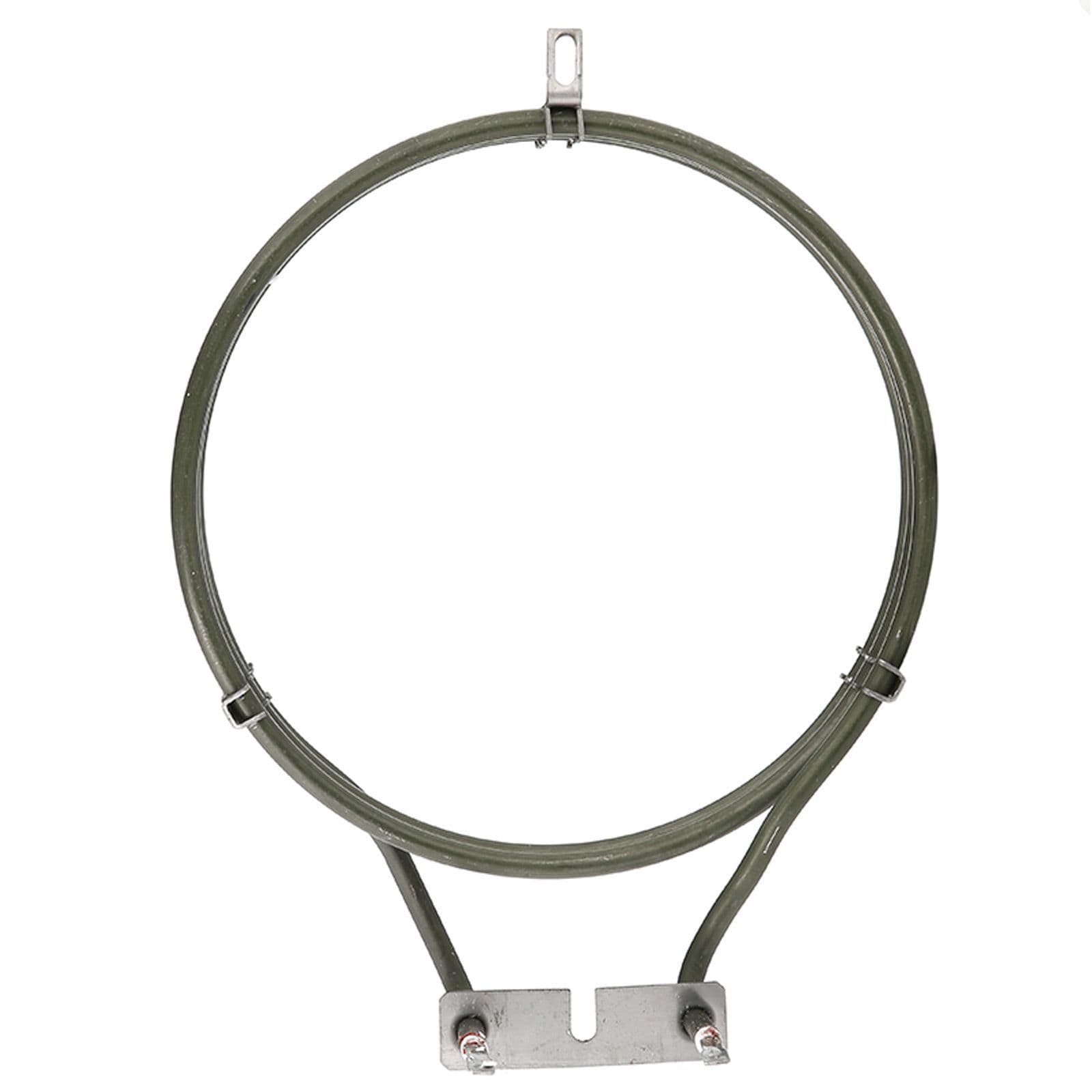

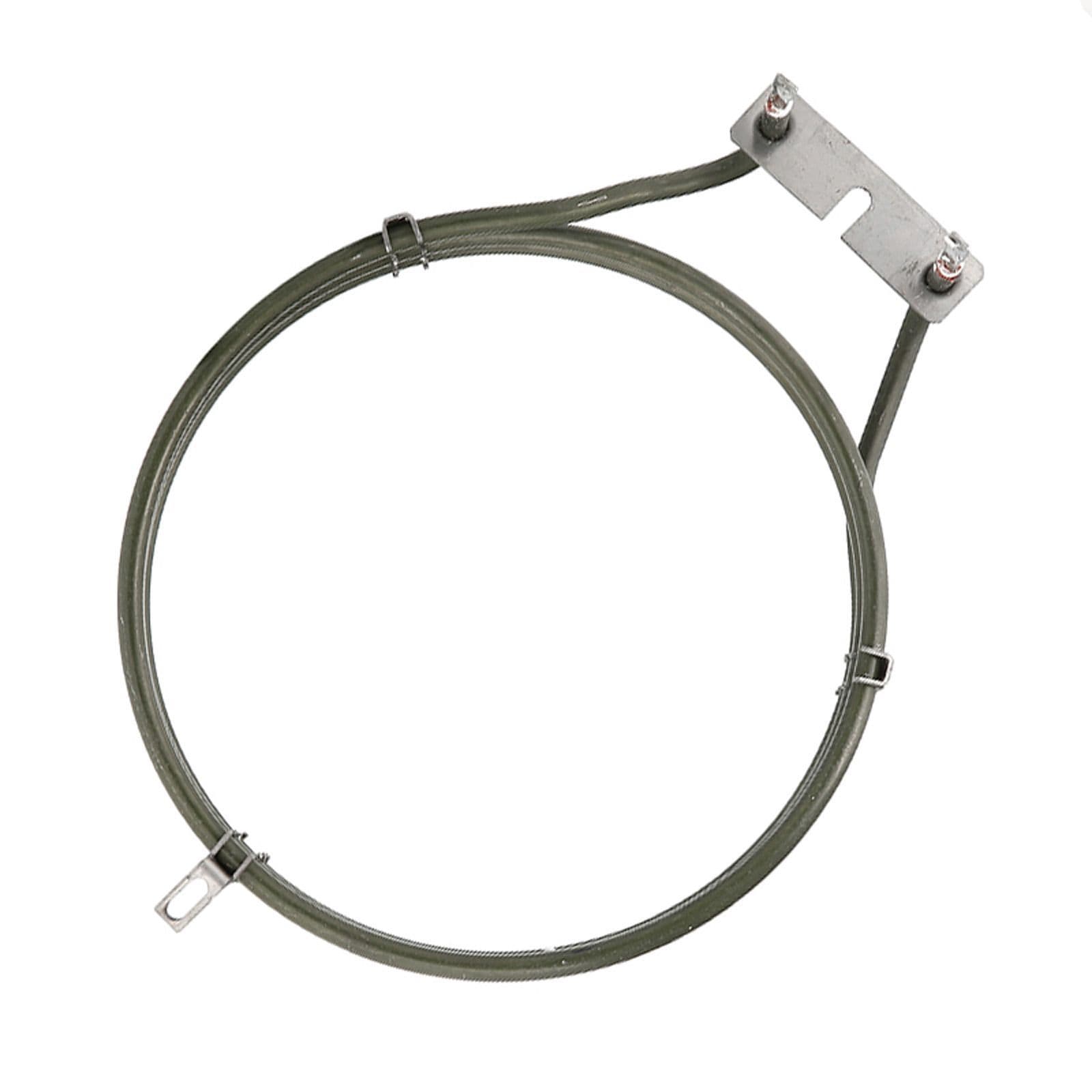

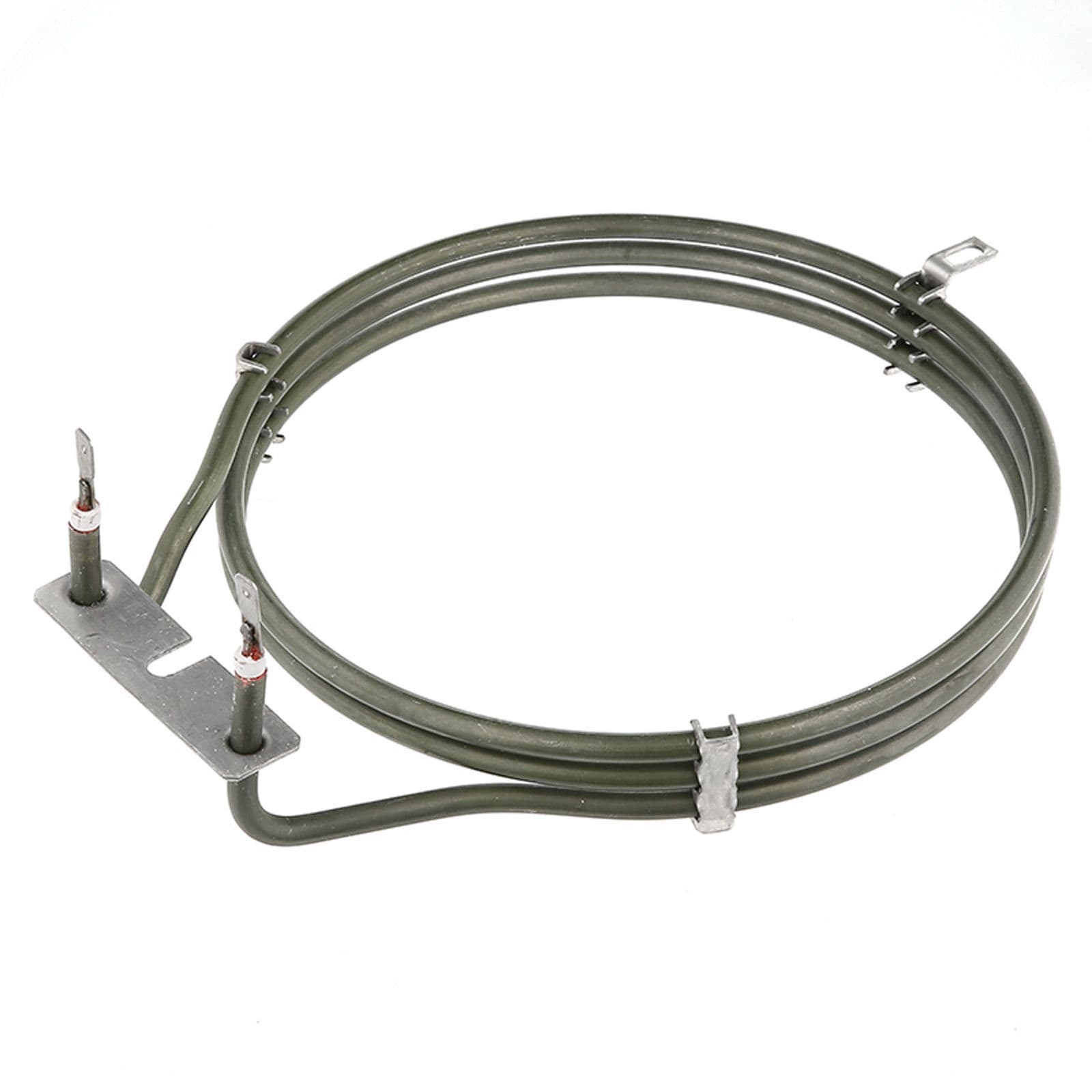

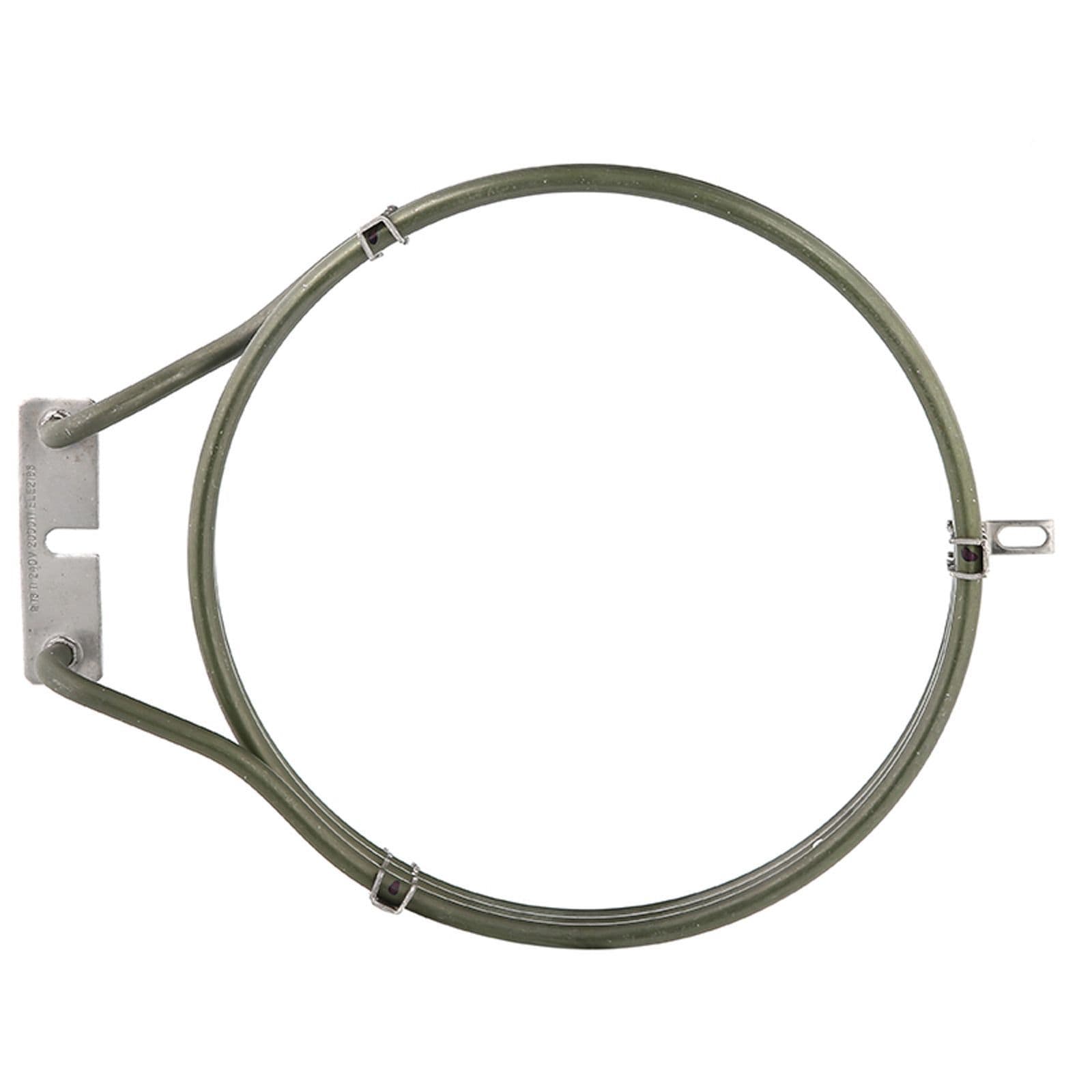

Fan Oven Element for CDA Diplomat Hygena Matrix Oelfana
This diagram is to show the measuring points on an element only
View Measurements in Specifications (* all Measurements are Approximate)
Fan Oven Cooker Element for CDA Diplomat Hygena Matrix OELFANA
Approximate dimensions
Width 193mm
Length 240mm
Fixing bracket 73mm
Terminals approximately 57mm apart (measured centre to centre)
CDA
DC740, DC740BL-0, DC740SS-0, DC740SS-1, DC740WH-0, DC940, DC940BL-0, DC940SS, DC0940SS-1, DC940WH-1, SA127SS, SA226
Diplomat
AHY3200, AHY3300, AHY3510, AHY3520, AHY3601, AHY3610, AHY3620, AHY3640, AHY3650, AHY3660, AHY4301, AHY4310, AHY4320, AHY4401, AHY4410, AHY4420, AHY4440, AHY4450, AHY4460
Hygena
AHY3210, AHY3220, AHY3310, AHY3320, AHY3410, AHY3420, AHY4210, AHY4220
Matrix
MS001, MS001SS, MS001WH, MS002SS
IMPORTANT
Please compare your old part with the photographs and dimensions provided prior to ordering as manufacturers change the design and components of their appliances without changing the model numbers and this is beyond our control.
Unless stated as a Genuine Part, The part will be a high-quality compatible part.
Manufacturers names and part numbers are used for reference only.
All electrical components should be fitted by a competent electrician / engineer.
Always remember to turn your appliance OFF and disconnect from the main electrical supply before starting any repair.
-
SKU:ELE2198
-
MPN:OELFANA
-
Width =A:193 mm
-
Fixing Plate =B:73mm
-
Fixing Holes =C:Centre
-
Terminal centres = D:57 mm
-
Length = E:240 mm
-
Watts:2000W
-
Turns:3 TURN
-
Voltage:230-240 V
-
Manufacture Type:Compatible Parts
-
Compatible With:CDA, Diplomat, Hygena, Matrix, Oelfana
-
Type:Fan Oven Element
-
Brand:CDA, Diplomat, Hygena, Matrix, Oelfana
-
Condition:New
-
Product Code:ELE2198
-
Weight:0.25kg
