This diagram is to show the measuring points on an element only
View Measurements in Specifications (* all Measurements are Approximate)

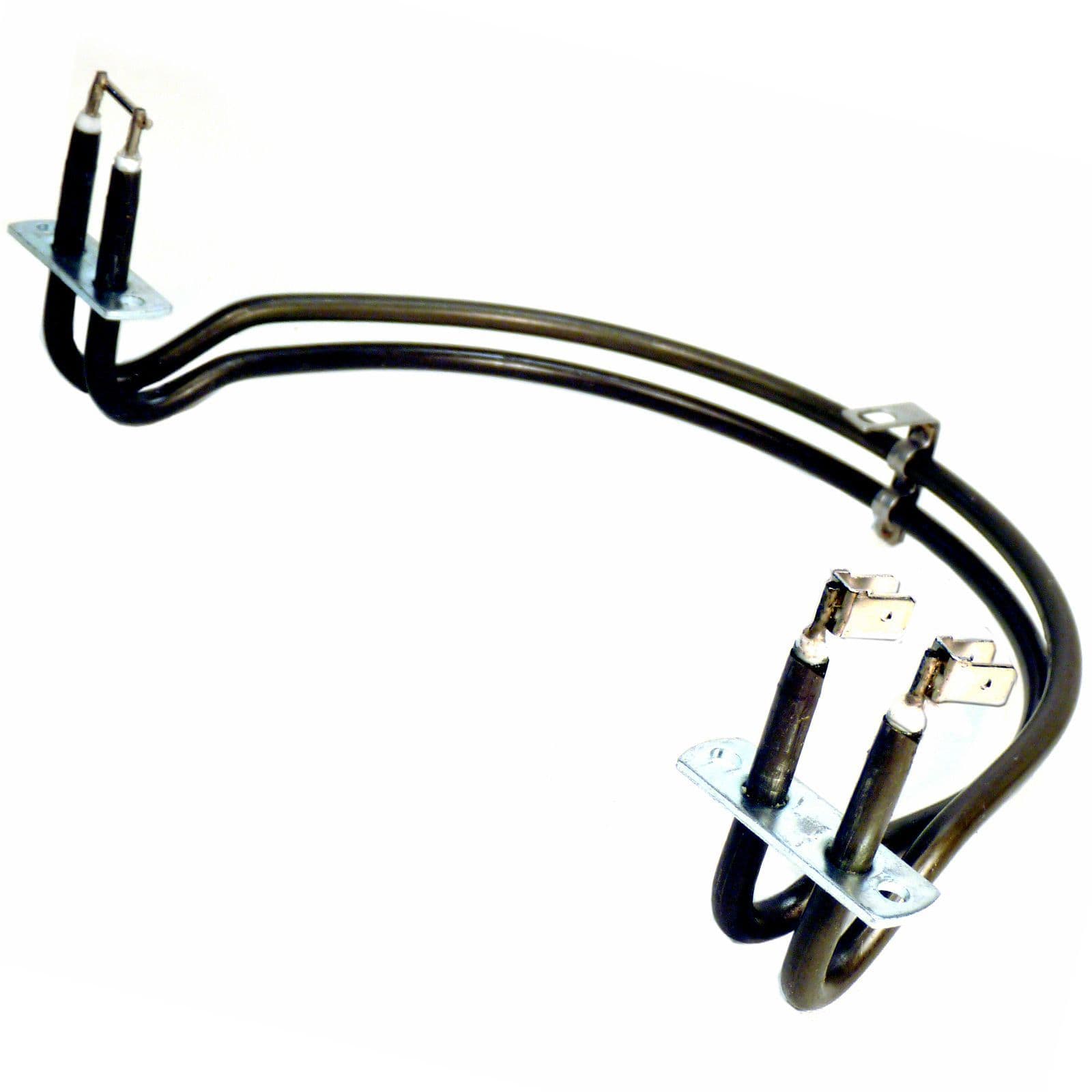

NEFF BOSCH SIEMENS FAN OVEN ELEMENT 494643 268359
FITS THE FOLLOWING MODELS
1700w  2 TURN ELEMENT

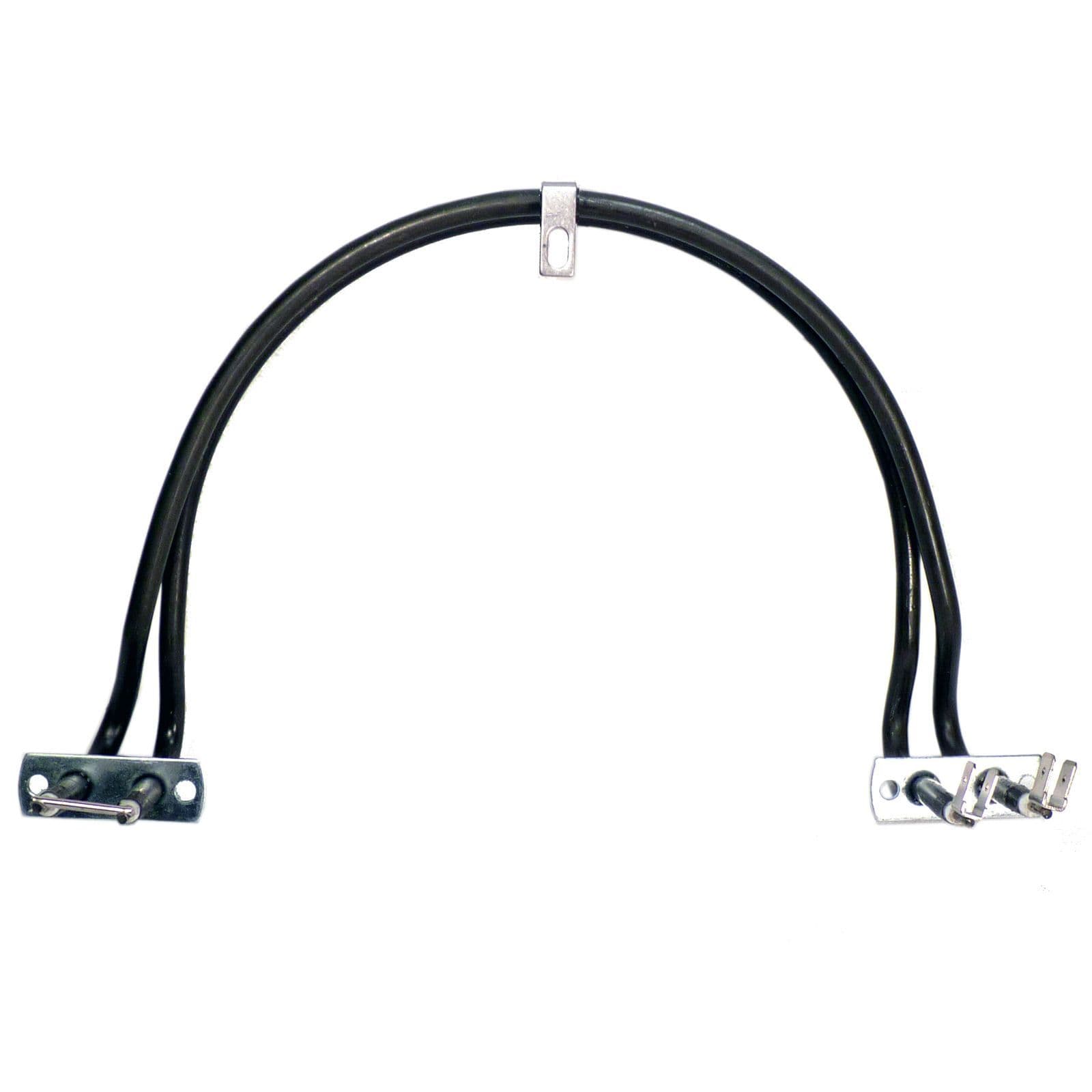

LENGTH  165mm   WIDTH  230mm

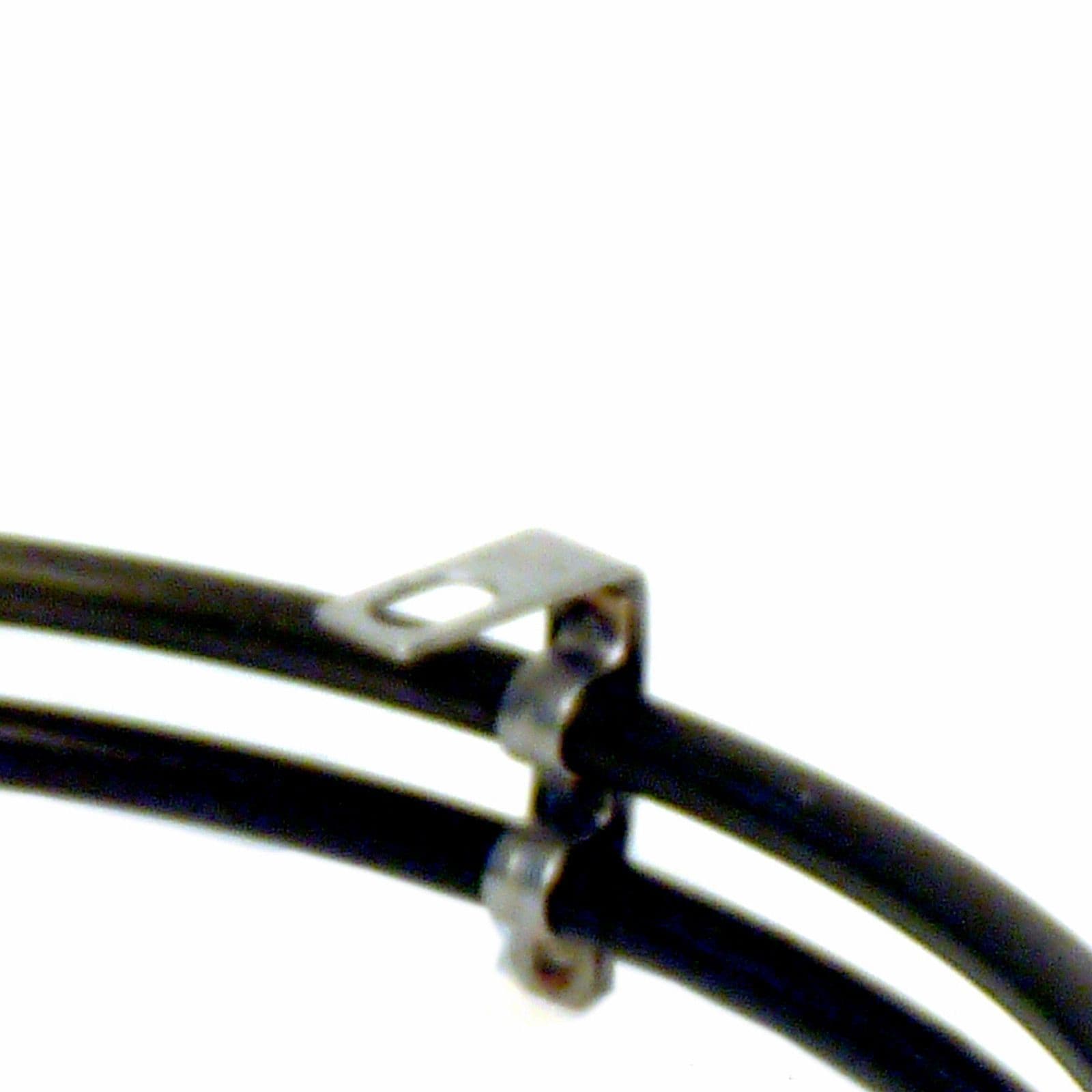

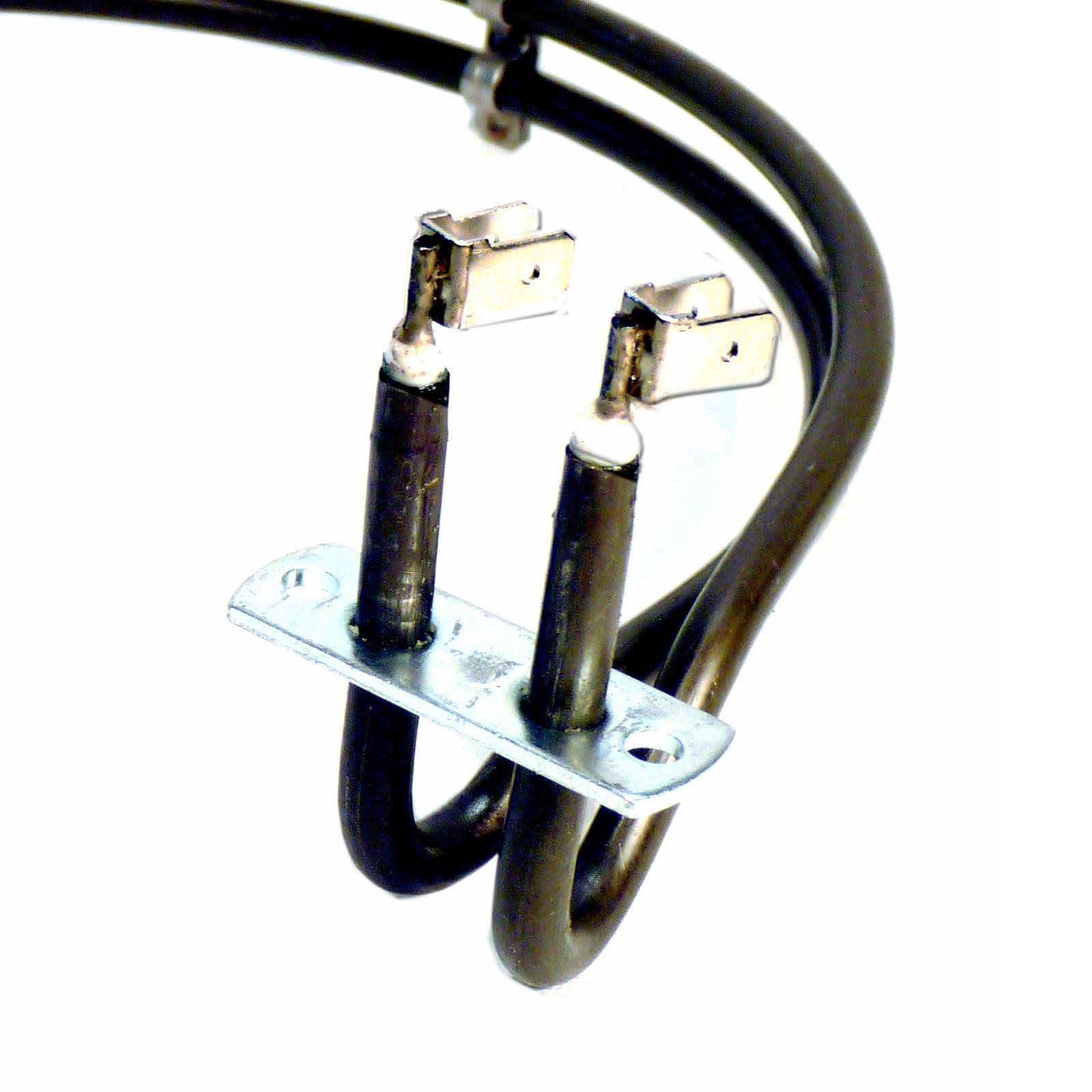

BRACKET  45mm   TAGS  18mm

Models:
Fits many more If can not find your model number bellow ,
Email us your details.

HBN7020GB/01, HBN7021GB/01, HBN7022GB/01, HBN7050GB/01, HBN7051GB/01, HBN7052GB/01, HBN7052GB/05, HBN7060GB/01, HBN7061GB/01, HBN7062GB/01, HBN90324GB/04, HBN90354, HBW7050GB/01, B1721N0GB/01, B1721N0GB/02, B1721N0GB/03, B1721N1GB/04, B1721N2GB/01, B1721N2GB/02, B1721N2GB/05, B1721S0GB/02, B1721S2GB/01, B1721W0GB/01, B1721W0GB/02, U1461S2GB/01, U1721W2GB/01, U172150GB/02, U1721N0GB/01, U1721N0GB/02, U1721N2GB/01, U1721S2GB/01, U1721W0GB/02,
SGS022GB/13, HBN430550B/02, HBN700550/01, PCD615CGB/07, PKE615CEU/01, B1861N2GB/05, B1881N0GB/01, B1881N2GB/02, B1881N2GB/05, B1861N2GB/05, T1213N0GB/01, T2124B0EU/01,
U1421N0GB/01, U171N1GB/04U, U1721N2GB/01, U1721N2GB/05, U1721S0GB/02, U1721S2GB/01, U1721W0GB/01, U1721W2GB/01, U1722S0GB/01, HB90325GB/02, HB90354GB/01, HB90355GB/01,
HB90355GB/02, HB90355GB/05, HB90364GB/01, HB90365GB/01,
HB90365GB/02, HB90365GB/03

IMPORTANT

Please compare your old part with the photographs and dimensions provided prior to ordering as manufacturers change the design and components of their appliances without changing the model numbers and this is beyond our control.

Unless stated as a Genuine Part, The part will be a high-quality compatible part.
Manufacturers names and part numbers are used for reference only.


All electrical components should be fitted by a competent electrician / engineer.
Always remember to turn your appliance OFF and disconnect from the main electrical supply before starting any repair.
