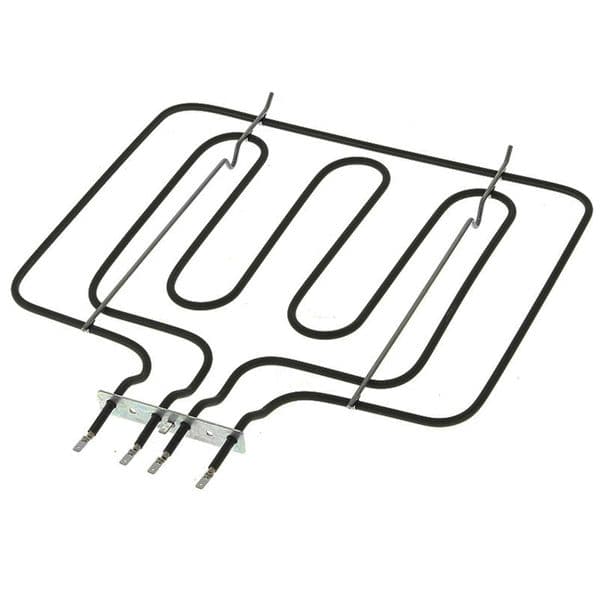

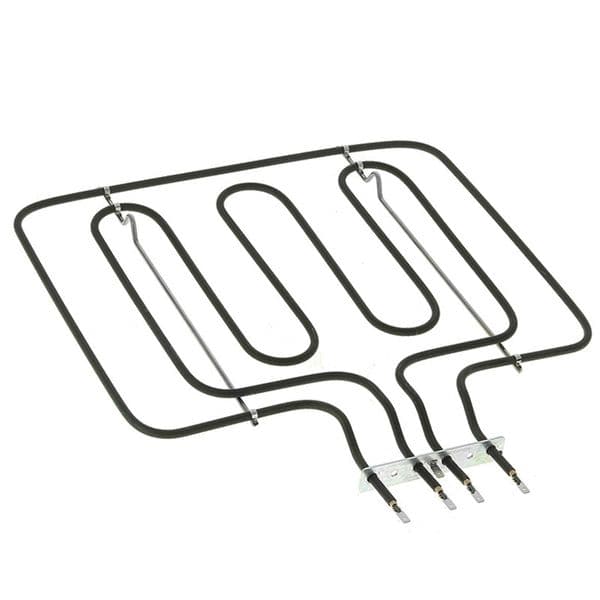

Whirlpool, Stoves, New World, Diplomat, Belling
Oven Cooker Grill Element

PART NUMBER 011561400

2800 W

HIGH QUALITY COMPATIBLE ELEMENT

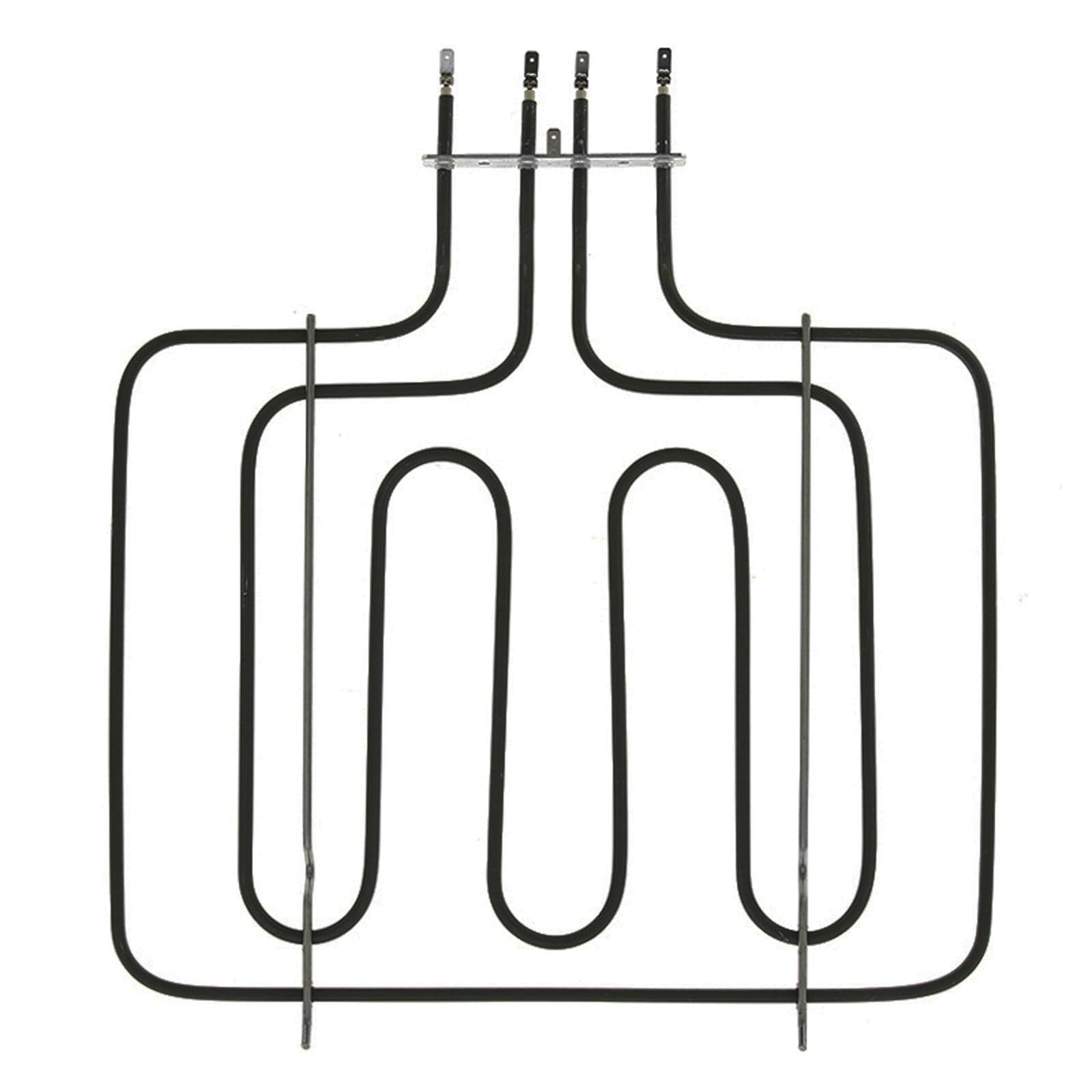

APPROXIMATE DIMENSIONS

WIDTH 383MM

LENGTH 385MM (FROM FIXING BRACKET)

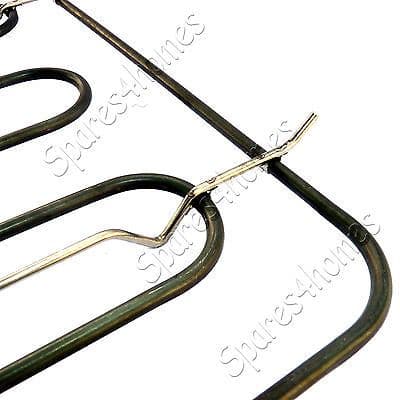

FIXING ROD LENGTH 340MM

FIXING RODS DISTANCE APART 227MM

FIXING BRACKET 125MM

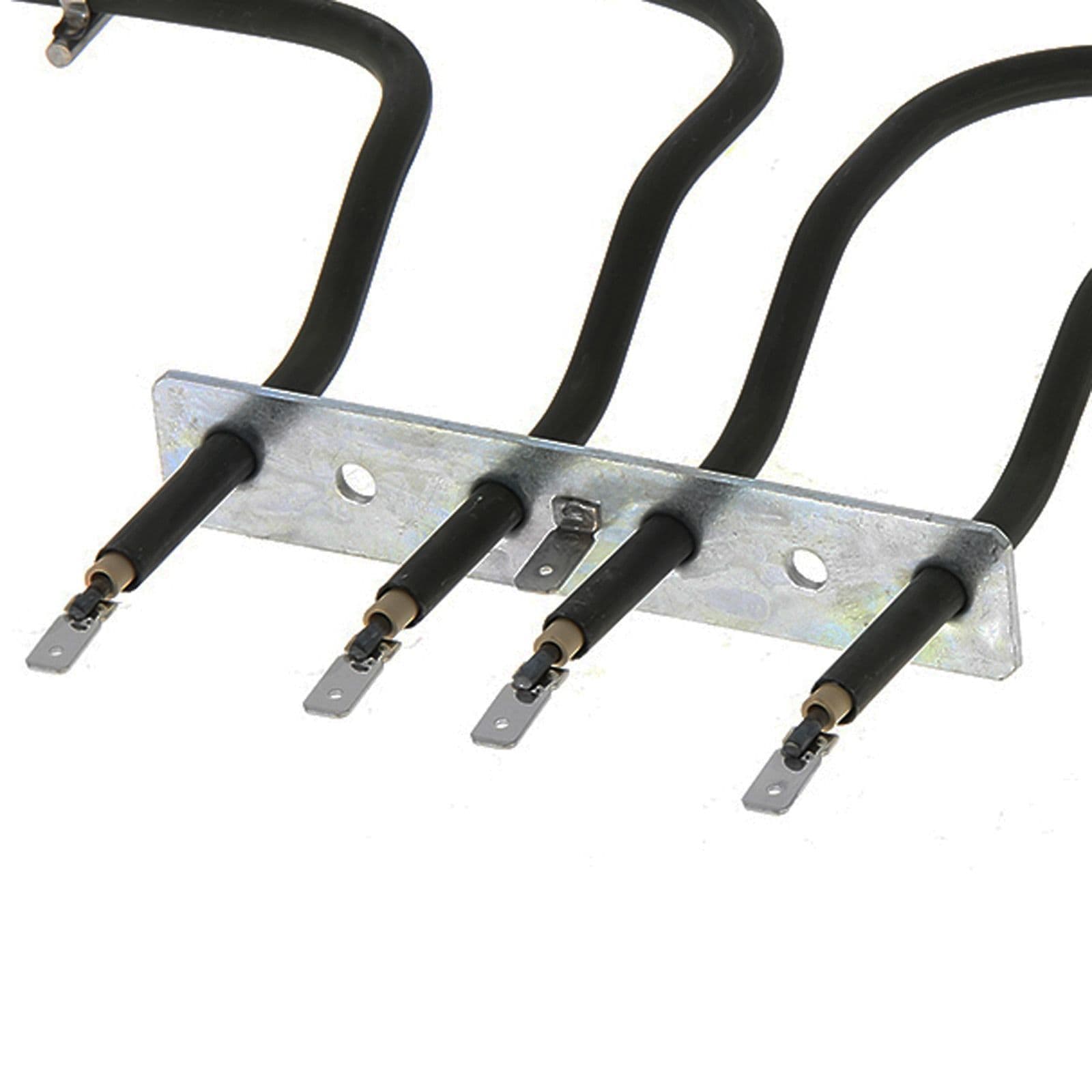

OUTER TERMINALS 100MM APART (CENTRE TO CENTRE)

                         INNER TERMINALS 25MM APART (CENTRE TO CENTRE)

FITS SEVERAL MODELS INCLUDING THE FOLLOWING

ARISTON

DOV317/1(BR), DOV317/1(SS), DOV317/1(WH), DOV317/1ICE, DOV318/1DBK, DOV318/1DGN, DOV318/1DWH, TC720(BK), TC720(BR), TC720(SS), TC720(WH)

BELLING

427WH, 654 ST, D841 ST, D854 ST, E641 ST, E649, E650 SI, XOU483, XOU594

CUISINA

EF70SS, EF70W, EF90BLK, EF90SS, EF90W

CDA

720 EF BL, 720 EF ST, CD 708BL BL, CD 708SS ST, CD 708W WH

DIPLOMAT

ADP3110, ADP3112, ADP3114, ADP3120, ADP3702, ADP3722, ADP3742, ADP4220, ADP4230, ADP4500, ADP4501, ADP4502, ADP4504, ADP4505, ADP5062, ADP5063, ADP5069, ADP5142, ADP5192, ADP5193, ADP5199, ADP5242, ADP5814, ADP5820, ADP5824, ADP5834, ADP5835, ADP5840, ADP5854, ADP5864, ADP5865, APL3401, APL3491, APL4301, APL4318, APL4328, APL4391, APL4406, APL4416, APL4426, APL4446, APL4456, APL4466, APL4476, APL5110, APL5111, APL5120, APL5121, APL5811, APL5813, APL5821, APL5823, APL5844, APL5854, APL5893

HYGENA

AHY4132, AHY4134, AHY4144, APL3418, APL3428, APL4212, APL4215, APL4222, APL4225, APL4245, APL4311, APL4316, APL4321, APL4326

IGNIS

AKF506/AV, AKF506/WH

IKEA

44541610, 64541685

INDESIT

FDE10(WH)GB, FDE10IXGB

NEW WORLD

110DF CA, 110DF GR, 110DF ST, 55EDMG SVG, 55EDMG WH, 60 DFDOM ST, 60EDCGA BR, 60EDCGA CR, 60EDCGA GR, 60EDCGA WH, 60EDOM ST, DF90 ST, E70DOA GR, E70DOA ST, E70DOA WH, E90DOA GR, E90DOA ST, E90DOA WH

STOVES

1100DF BL, 1100DF CR, 1100DF GR, 1100DF LPG BL, 1100DF LPG GR, 1100DFA AL, 1100DFA ST, 1100DFASI BL, 1100DFASI CR, 1100DFASI GR, 1100DFASI LPG BL, 1100DFASI LPG BU, 1100DFASI LPG CR, 1100DFASI LPG GR, 1100DFASI LPG SC, 1100DFASI SC, 1200DFA ST, 600DFSIDOA BL, 600DFSIDOA BR, 600DFSIDOA GR, 600DFSIDOA ST, 600DFSIDOA WH, 600EF ST, 600EF WH, 61DFDO BL, 61DFDO ST, 61DFDO WH, 61EDO BL, 61EDO ST, 61EDO WH, 61EHDO BL, 61EHDO ST, 61EHDO WH, 700DFDOA ST, 707MF WH, 720EF ST, 720EF WH, 720EMA BL, 720EMA CH, 720EMA GR, 720EMA ST, 720EMA WH, 900DFA ST, 900EF ST, 900EF WH, 900EMA BL, 900EMA CH, 900EMA ST, 900EMA WH, DF600SIDOM BL, DF600SIDOM SVC, DF600SIDOM WH, EC600DO DLM SVC, ECH600DOA BL, EF600A BL, EF600A ST, EF600A WH, EFA700H ST, EFA900H ST, EL616 BR, EL616 GR, EL616 MK11 AN, EL616 MK11 BR, EL616 MK11 ST, EL616 MK11 WH, EL616 WH, EL716 BR, EL716 GR, EL716 MK11 AN, EL716 MK11 BR, EL716 MK11 ST, EL716 MK11 WH, EL716 WH, EL916 MK11 AN, EL916 MK11 BR, EL916 MK11 ST, EL916 MK11 WH, ES600DODLM BR

WHIRLPOOL

ACM237, ACM261BR, ACM261WH, ACM276BR, ACM276GRN, ACM276WH, ACM290/1GR, ACM290/1WH, ACM290GRN, ACM290WH, ACM327WH, ACM340GR, ACM340WH, AKG668/AV/01, AKG668/IX/01, AKG668/RG/01, AKG668/WH/01, AKG668AV, AKG668GR, AKG668WH, BDO811AV, BDO811WH

All electrical components should be fitted by a competent electrician.
Unless specified in the listing the parts we sell are good quality replicas.

We strongly recommend you remove the part that is faulty and check it against the dimensions and photographs provided in the listing prior to ordering.
Manufacturers often change the design and components of their appliances without changing the model numbers and this is beyond our control.
