This diagram is to show the measuring points on an element only
View Measurements in Specifications (* all Measurements are Approximate)

Models:
Fits many more If can not find your model number bellow ,
Email us your details.

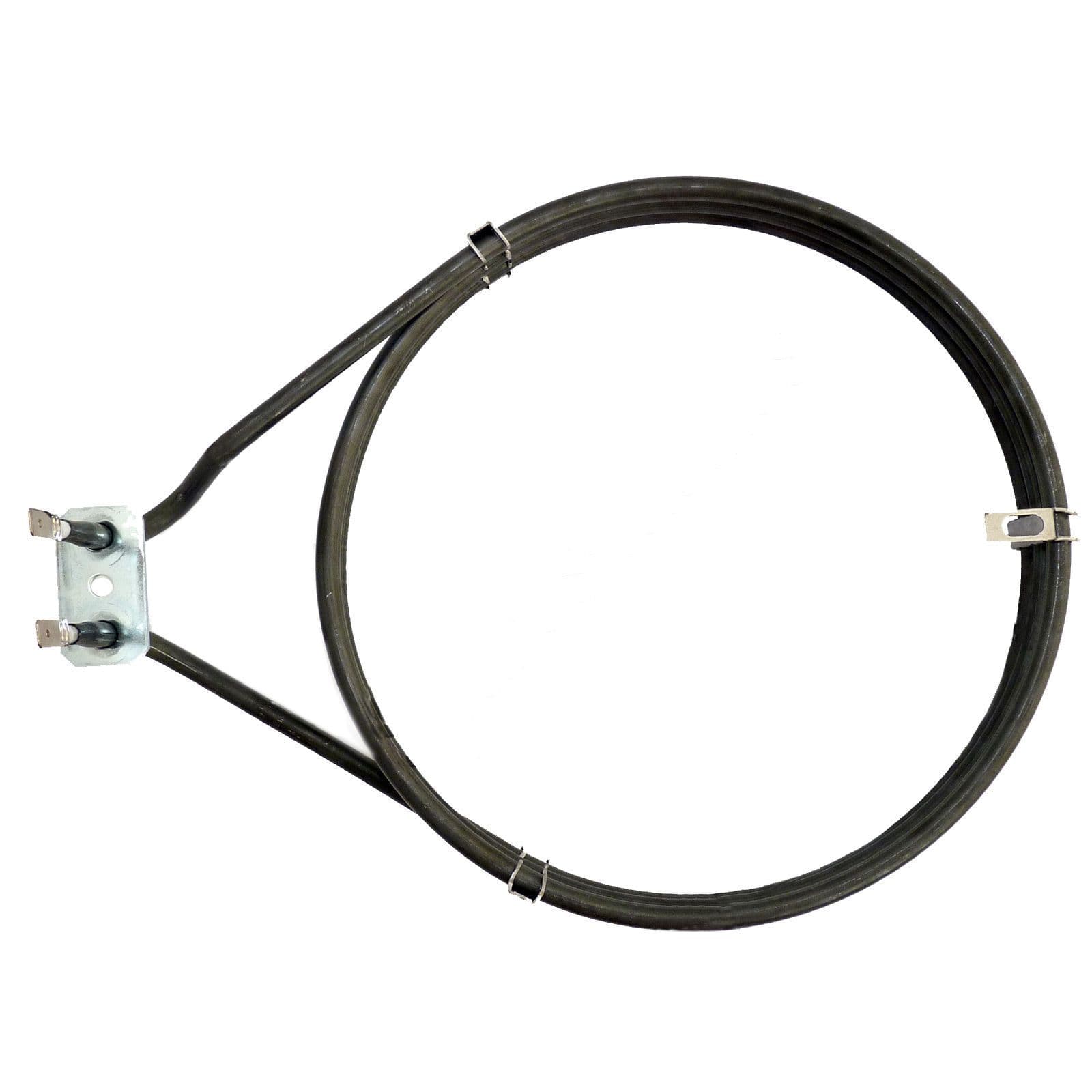

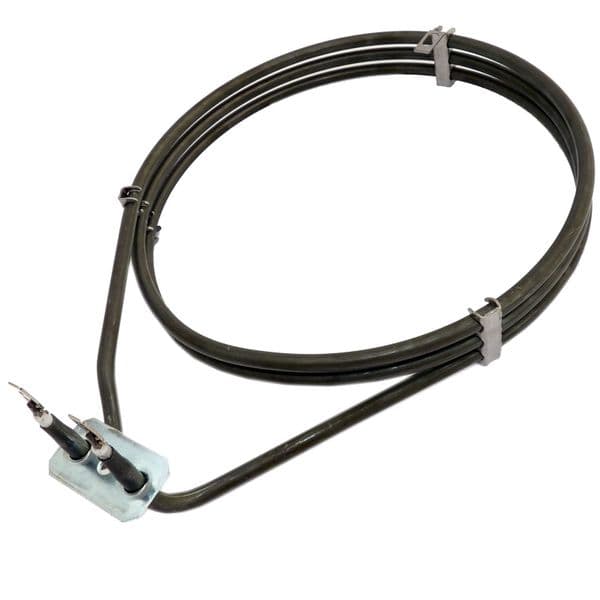

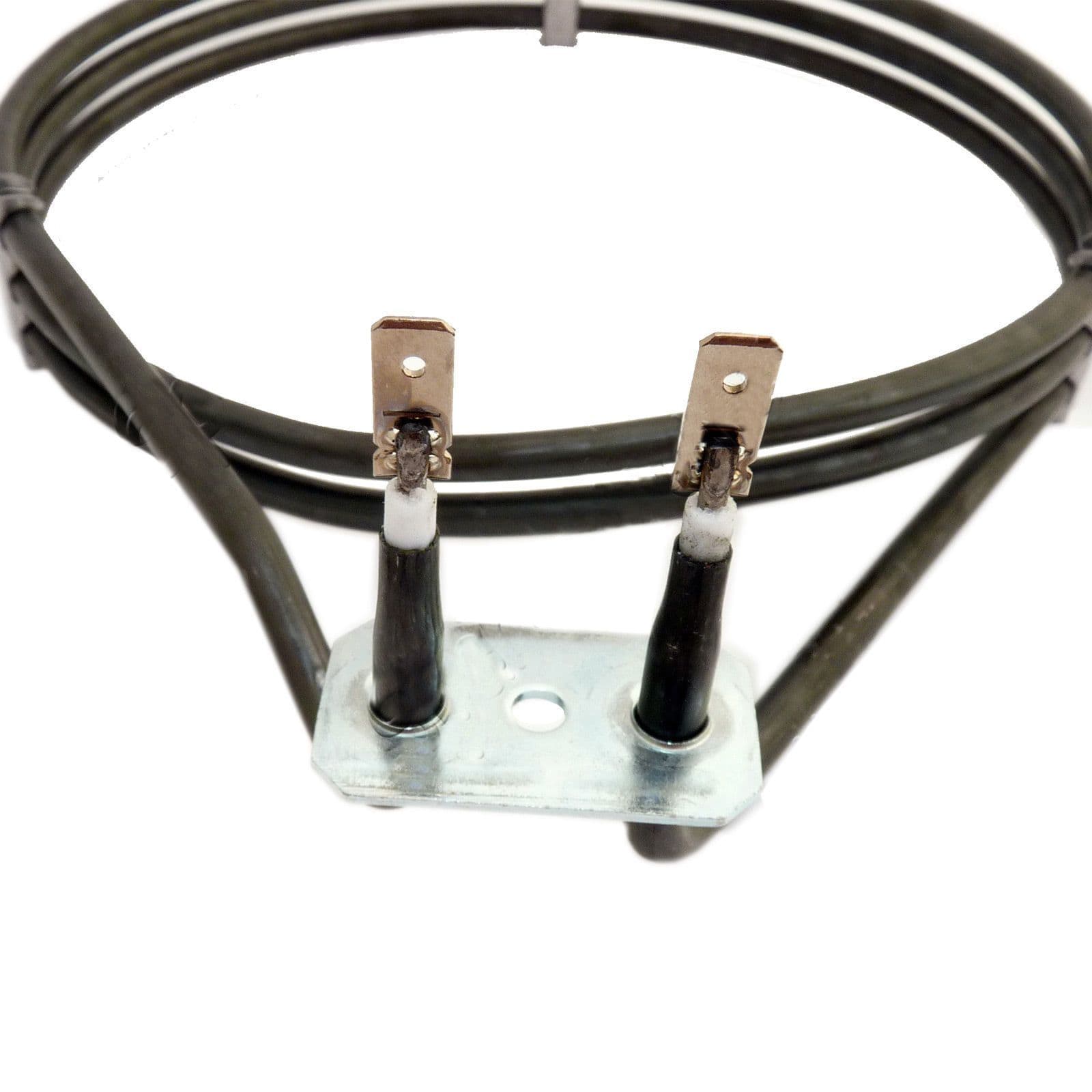

FAN OVEN COOKER ELEMENT 949712292 949712791 3970123018

THIS IS A HIGH QUALITY PATTERN PART

APPROXIMATE DIMENSIONS

2000W

WIDTH 195MM

LENGTH 255MM

FIXING PLATE 40MM

TERMINALS 25 APART (CENTRE TO CENTRE)

FITS SEVERAL MODELS INCLUDING THE FOLLOWING

AEG

B89092-4M, B99698-5-M, BP7614000M, BP7714000M, B99697-5-M

ELECTROLUX

EKC6707X, EOB51001X, EOB6710X-A, EOB966X, EKM6700X, EOB53001W, EOB6730X, EOC6800X, EKM6701X, EOB53001X, EOB6730X-A, EOS6700W, EKM70150X, EOB5700K, EOB6740X, EOS6700X, EOB31010W, EOB5700W, EOB6740X-A, ESOMSS, EOB31010X, EOB5700X, EOB6790X, ESOMWH, EOB51001K, EOB66714X, EOB6790X-A, ESOPMSS, EOB51001W, EOB6710X, EOB966W

IKEA

FOV9, FOV10

JOHN LEWIS

JLBIOS601, JLBIOS602, JLBIOS603, JLBIOS661, JLBIOS662

TRICITY BENDIX

TBF610WH, TBF650WH, TBF650X, TBF690X, TBF610X

ZANUSSI

ZBF260W, ZBQ865N, ZCM641X, ZOB343X, ZBF260X, ZBQ865W, ZOB1060X, ZOB383X, ZBF360B, ZBQ865X, ZOB142W, ZOB550WL, ZBF360W, ZBS1063X, ZOB142X, ZOB550XL, ZBF360X, ZBS863X, ZOB143X, ZOB551X, ZBF560X, ZCE640W, ZOB230N, ZOB555WL, ZBF569SW, ZCE641X, ZOB230W, ZOB555XL, ZBF569SX, ZCE650W, ZOB230X, ZOB580N, ZBP1165X, ZCE651X, ZOB330W, ZOB580X, ZBQ465X, ZCM640W, ZOB330X, ZOB660X, ZOB690X, ZPB1260X, ZYB460X, ZYB594X

IMPORTANT

Please compare your old part with the photographs and dimensions provided prior to ordering as manufacturers change the design and components of their appliances without changing the model numbers and this is beyond our control.

Unless stated as a Genuine Part, The part will be a high-quality compatible part.
Manufacturers names and part numbers are used for reference only.

All electrical components should be fitted by a competent electrician / engineer.
Always remember to turn your appliance OFF and disconnect from the main electrical supply before starting any repair.
